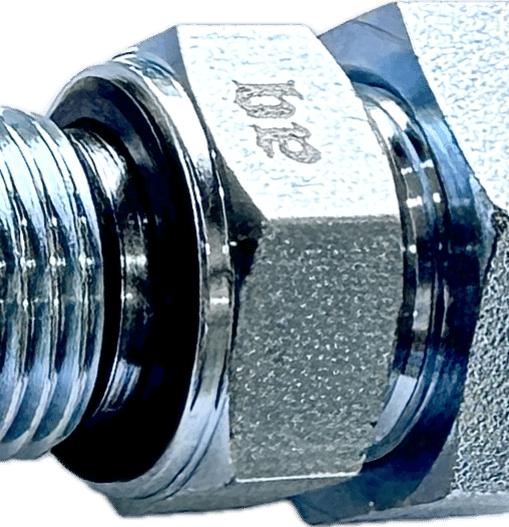

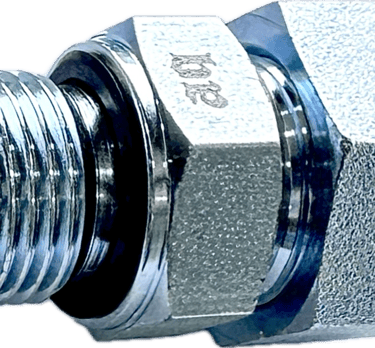

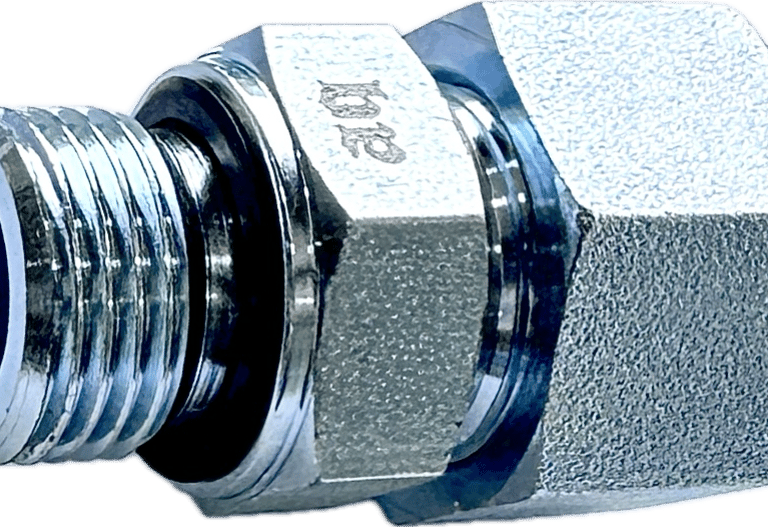

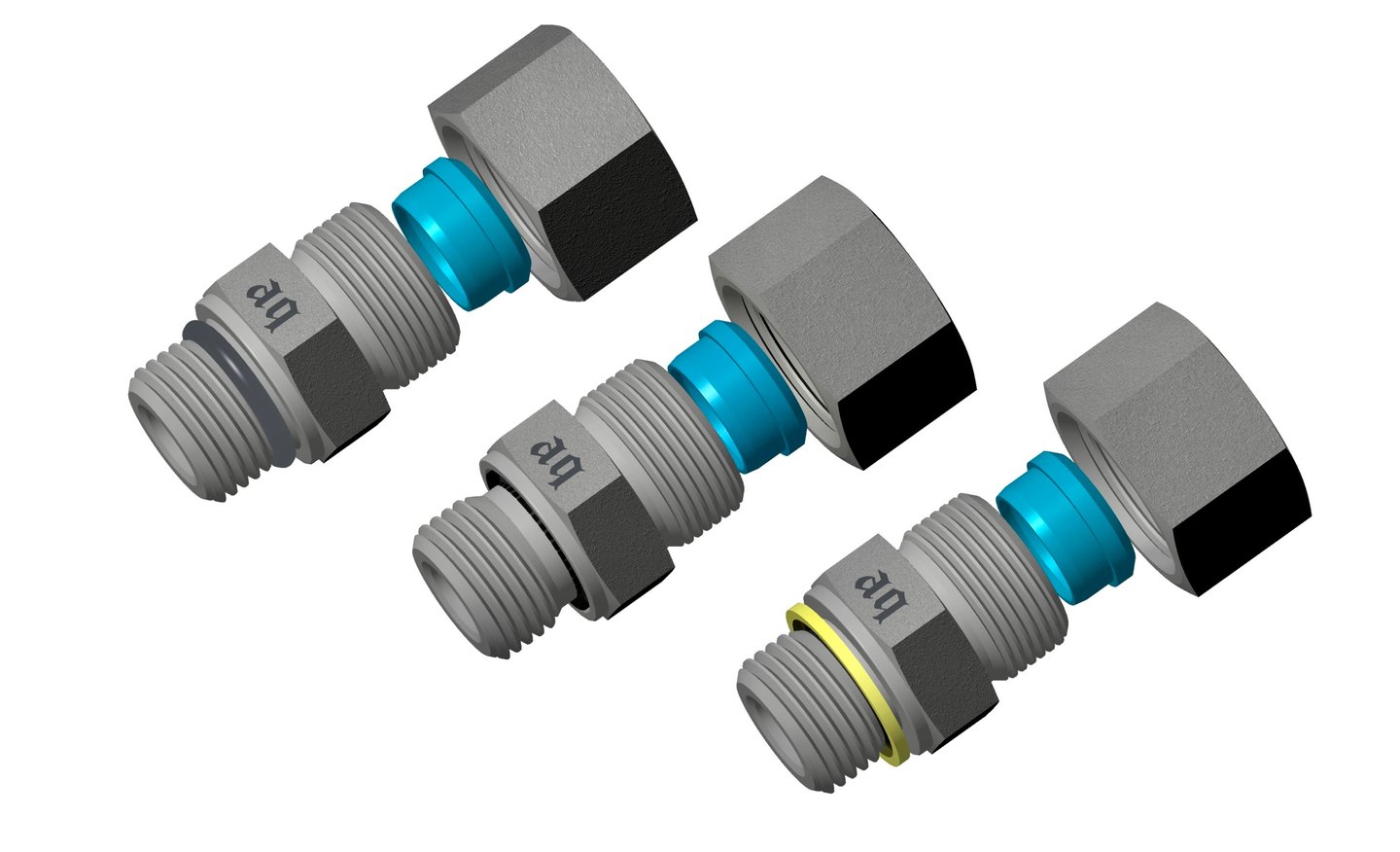

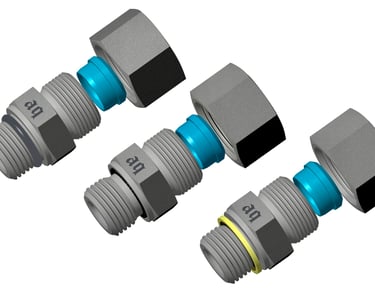

Male Stud
Coupling
Introducing the paramount in tube-to-tube connectors! Our reputation is forged on the exceptional quality we offer. What sets us apart is our unwavering commitment to design and efficiency, ensuring top-tier performance. We aren't just good; we're the best at what we do. What makes us truly stand out is our relentless pursuit of improvement. With us, you're not just getting quality – you're getting the absolute best. When it comes to tube connectors, choose the brand that doesn't settle for good, but constantly strives to be better. Choose us.

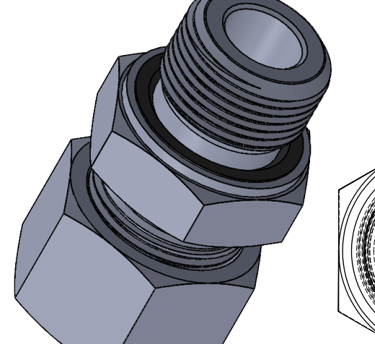

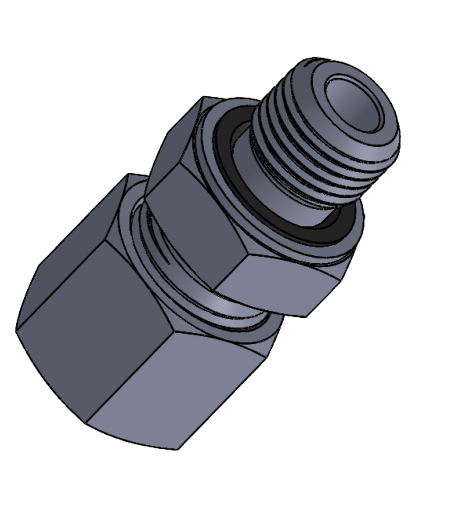

Male Stud Coupling -
G1/8" x 6 [ M12 x 1.5 ]
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Male Stud Coupling - G1/8" x 6 [ M12 x 1.5 ]
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
280 Bars of Dynamic Pressure [ 4,100 PSI Dynamic Pressure ] 28 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
6 mm OD
Threading Size :
M12 x 1.5 [thread pitch] x G1/8" BSPP / NPT

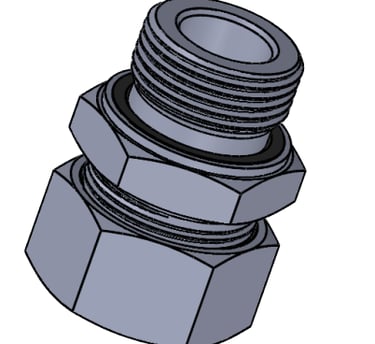

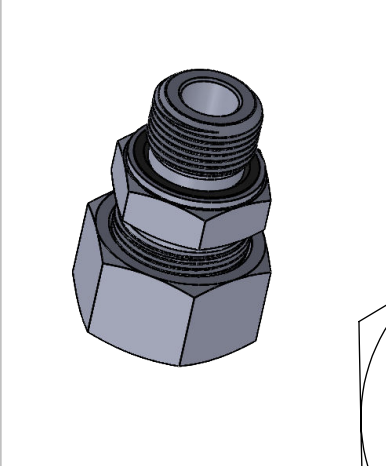

Male Stud Coupling -
G1/4" x 8 [ M14 x 1.5 ]
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Male Stud Coupling - G1/4" x 8 [ M14 x 1.5 ]
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
280 Bars of Dynamic Pressure [ 4,100 PSI Dynamic Pressure ] 28 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
8 mm OD
Threading Size :
M14 x 1.5 [thread pitch] x G1/4" BSPP / NPT

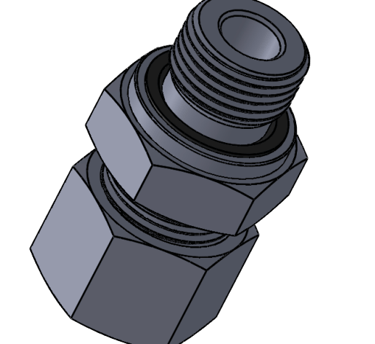

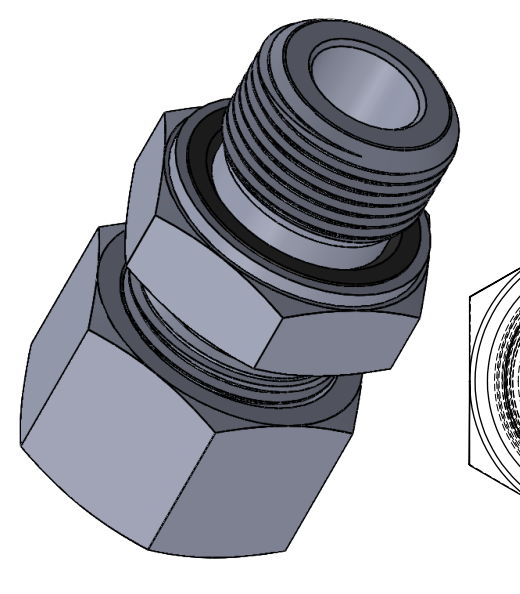

Male Stud Coupling -
G1/4" x 10 [ M16 x 1.5 ]
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Male Stud Coupling - G1/4" x 10 [ M16 x 1.5 ]
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
280 Bars of Dynamic Pressure [ 4,100 PSI Dynamic Pressure ] 28 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
10 mm OD
Threading Size :
M16 x 1.5 [thread pitch] x G1/4" BSPP / NPT

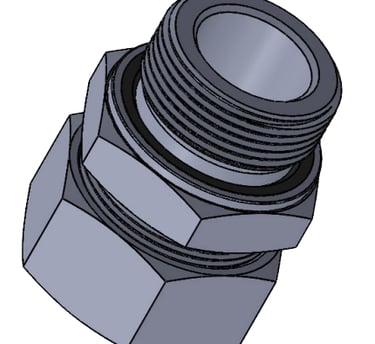

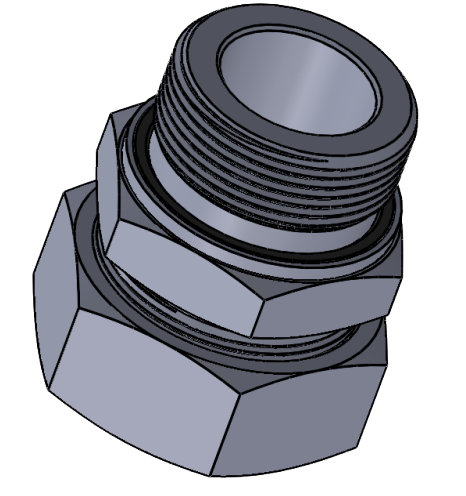

Male Stud Coupling -
G3/8" x 12 [ M18 x 1.5 ]
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Male Stud Coupling - G3/8" x 12 [ M18 x 1.5 ]
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
280 Bars of Dynamic Pressure [ 4,100 PSI Dynamic Pressure ] 28 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
12 mm OD
Threading Size :
M18 x 1.5 [thread pitch] x G3/8" BSPP / NPT

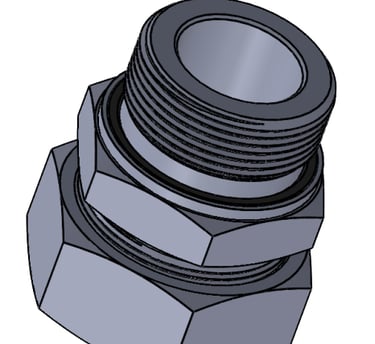

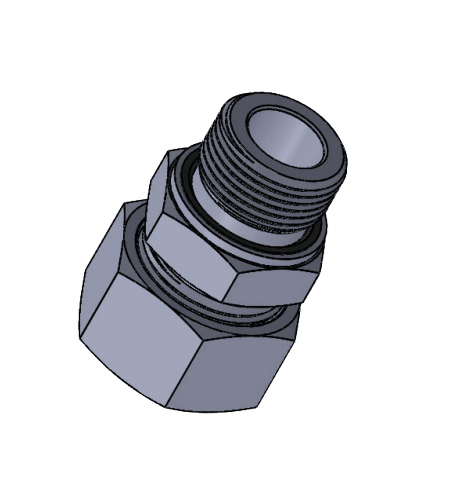

Male Stud Coupling -
G1/2" x 15 [ M22 x 1.5 ]
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Male Stud Coupling - G1/2" x 15 [ M22 x 1.5 ]
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
280 Bars of Dynamic Pressure [ 4,100 PSI Dynamic Pressure ] 28 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
15 mm OD
Threading Size :
M22 x 1.5 [thread pitch] x G1/2" BSPP / NPT

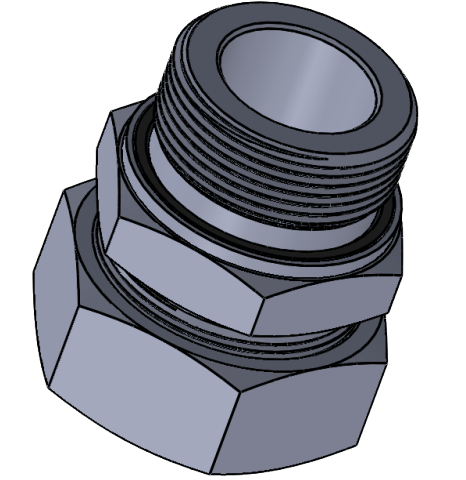

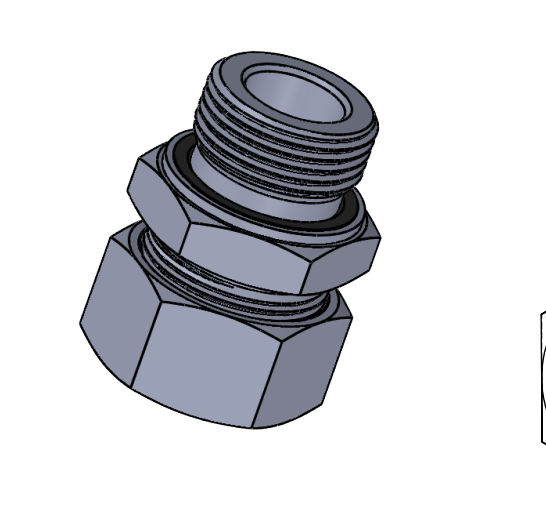

Male Stud Coupling -
G1/2" x 18 [ M26 x 1.5 ]
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Male Stud Coupling - G1/2" x 18 [ M26 x 1.5 ]
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
280 Bars of Dynamic Pressure [ 4,100 PSI Dynamic Pressure ] 28 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
18 mm OD
Threading Size :
M26 x 1.5 [thread pitch] x G1/2" BSPP / NPT

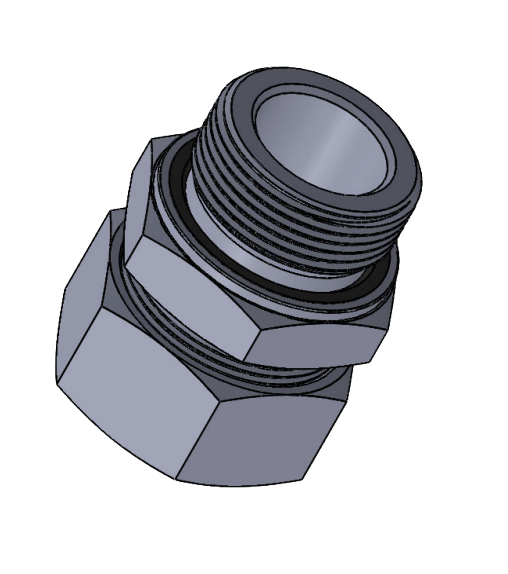

Male Stud Coupling -
G3/4" x 22 [ M30 x 2.0 ]
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Male Stud Coupling - G3/4" x 22 [ M30 x 2.0 ]
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
280 Bars of Dynamic Pressure [ 4,100 PSI Dynamic Pressure ] 28 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
22 mm OD
Threading Size :
M30 x 2.0 [thread pitch] x G1/2" BSPP / NPT
Male Stud Coupling -
G1" x 28 [ M36 x 2.0 ]
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Male Stud Coupling - G1" x 28 [ M36 x 2.0 ]
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
28 mm OD
Threading Size :
M36 x 2.0 [thread pitch] x G1" BSPP / NPT
160 Bars of Dynamic Pressure [ 2,300 PSI Dynamic Pressure ] 16 MPa Dynamic Pressure.
Male Stud Coupling -
G1 1/4" x 35 [ M45 x 2.0 ]
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Male Stud Coupling - G1 1/4" x 35 [ M45 x 2.0 ]
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
35 mm OD
Threading Size :
M45 x 2.0 [thread pitch] x G1 1/4" BSPP / NPT
160 Bars of Dynamic Pressure [ 2,300 PSI Dynamic Pressure ] 16 MPa Dynamic Pressure.
Male Stud Coupling -
G1 1/2" x 42 [ M42 x 2.0 ]
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Male Stud Coupling - G1 1/2" x 42 [ M52 x 2.0 ]
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
42 mm OD
Threading Size :
M42 x 2.0 [thread pitch] x G1 1/2" BSPP / NPT
160 Bars of Dynamic Pressure [ 2,300 PSI Dynamic Pressure ] 16 MPa Dynamic Pressure.
CUSTOMISE YOUR FITTINGS
We can customise every bit of your fittings, where u want ED sealing or Hose seating... there is nothing we CAN-not do.
